Designed to be accessible and easy to open
To ensure consistently clean items, this stainless steel blade rotates at 3,600 RPM to pulverize food particles and helps to prevent large particles from clogging the wash arms.
A beam of light measures soil levels and water temperature to adjust to the ideal cycle time.
Get the best possible price while shopping at TA Appliance! If you find a lower price we will match and beat it by 10% of the difference for up to 30 days after delivery!
Learn more
Couldn't load pickup availability
1/4
Purchase any qualifying Appliances or Garage Products and receive FREE Local Delivery!
Our team will contact you within 48 hours.
Designed to be accessible and easy to open
To ensure consistently clean items, this stainless steel blade rotates at 3,600 RPM to pulverize food particles and helps to prevent large particles from clogging the wash arms.
A beam of light measures soil levels and water temperature to adjust to the ideal cycle time.
Expect exceptionally clean table-ready dishes with powerful wash arms.
High-temperature rinse sanitizes and reduces by 99.999% the bacteria found on dishes.
Certified to exceed Energy Star® guidelines for energy efficiency
Connect to WiFi* for real-time feedback, optimized performance, alerts and more. *Requires a U+ Connect Plus WiFi module, sold separately.
Amazon Alexa, IFTTT, Google Assistant.
| Type | Built-In |
| Color | Panel Ready |
| Manufacturer Color | Custom Panels |
| Place Settings | 12 |
| Tub Material | Stainless Steel |
| Silence Rating | 51 dB |
| Number of Cycles | 3 |
Wash Cycles • Auto Sense • Heavy Wash • Light Wash | |
Options • Child Lock • Delay Start 1-12 Hr. • Sani (NSF Certified) • Start/Reset • TempBoost |
Technologies • Piranha™ Hard Food Disposer • Flood Control System • Connected Capabilities: Amazon Alexa, IFTTT, Sonos, The Google Assistant | |
| Delay Start Information | 1-12 Hours |
| Delay Start | Yes |
| Control Lock | Yes |
| Filtration System | Yes |
| Silverware Basket | Yes |
| Wi-Fi | Yes |

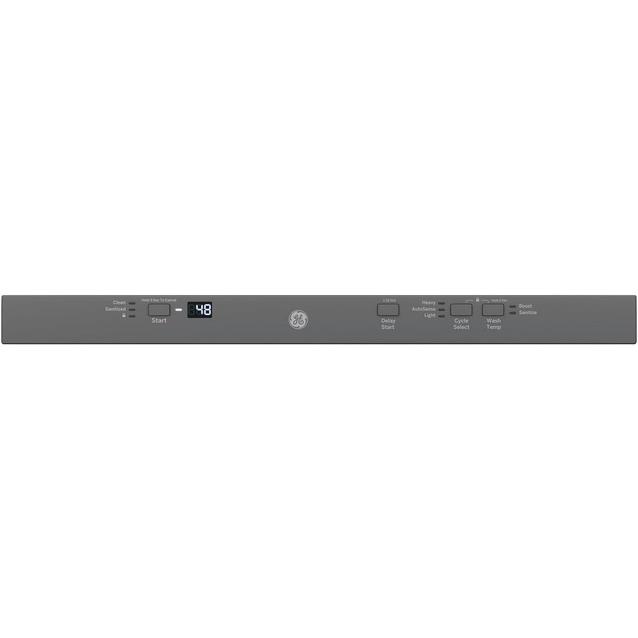

| Automatic HotStartAutomatic Temperature ControlDual Pump3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress IndicatorsAudible End-of-Cycle SignalCycle CountdownLast Cycle MemoryStart/Reset PadClean Sensor2 with Upper Nozzle Wash Arms3-Stage Manual Clean FiltrationRinse Aid with Indicator and Adjustment1 Plastic Utility Shelf - Upper2 Piece Silverware Basket with Cell CoversBall-Tipped TinesStem SafeAdjustable Nylon Upper RackDrying Features: Calrod Heater / Condensate Dry |
Information • 120 V • 60 Hz • 8.9 A • Calrod Heater Watts: 1100 |
| Energy Star Certified | Yes |
| NSF® Certified | Yes |
| ADA Compliant | Yes |
| Optional | WiFi Connect: (Requires part no. PBX23W00Y0) |
| Class Width | 24" |
| Width | 23.75 inch(es) / 60.32 cm |
| Height (Min.) | 32.25 inch(es) / 81.92 cm |
| Depth (Without Handle) | 23.5 inch(es) / 59.69 cm |
| Depth (Including Handle) | 23.5 inch(es) / 59.69 cm |
| Weight | 81 lb(s) / 36.74 kg |
| Additional Dimensions | Height with Legs Extended Maximum Height: 34.625" |
| Width | 26.5 inch(es) / 67.31 cm |
| Height | 36 inch(es) / 91.44 cm |
| Depth | 25.3 inch(es) / 64.26 cm |
| Weight | 95.99 lb(s) / 43.54 kg |
| Warranty | Limited 1 Year Parts and Labor |
| UPC# | 084691860655 |
